DIV
6-stage Clock Divider

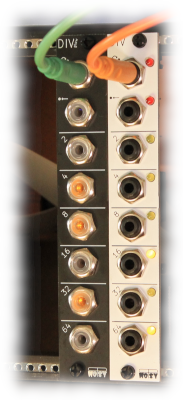

The moPsy DIV module is a rhythm and clock divider with six output stages, similar to the Doepfer A-160-1.
It accepts audio frequencies and happily scales them down by several octaves. (Bear in mind that the output will be 50% PWM.)
The reset input can be configured to trigger from the bus gate with a jumper.
Documentation
Availability
available
Dimensions
| Width | 4 HP |
| Depth | 40 mm |
Power Consumption
| +12V | 40 mA |
| -12V | -- |
| +5V | -- |
