Eurorack Power Breakout

Eurorack Power on the Breadboard

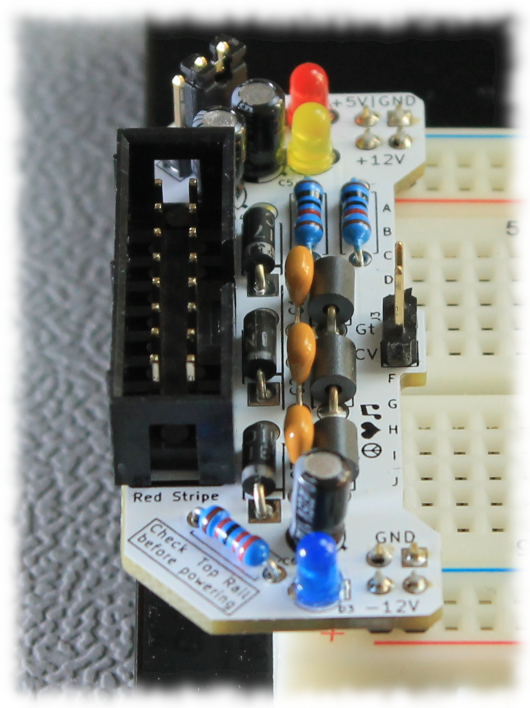

This is a breakout board to provide a filtered power supply from the Eurorack Bus to your breadboard.

A bus decoupling setup like this would typically be found on your module.

The top rail can be switched between +5V or ground, depending on your prototype’s needs.

The CV and Gate signals from the bus are available on the breakout board, in case your build uses them.

Please note: This requires a Eurorack Synthesizer power bus, as a Eurorack module would.
